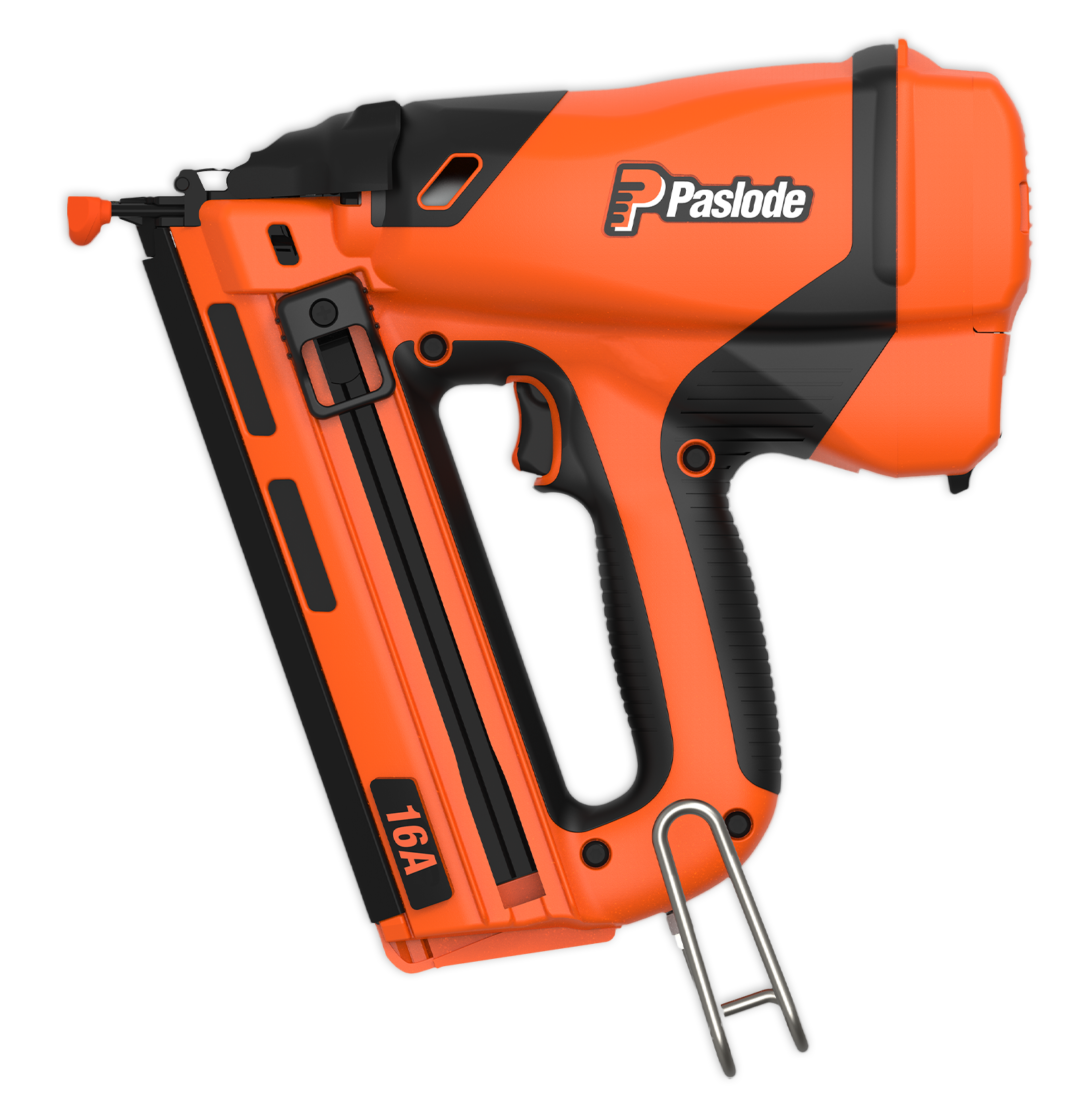

The Paslode 16Ga Angled TrimMaster™ has been built to perform. Reliable, compact and lightweight the angle bradder is a must have for all finishing carpenters and general builders.
The contoured body design provides optimal line of sight, the nose design ensures consistent depth of drive and minimal work surface damage.

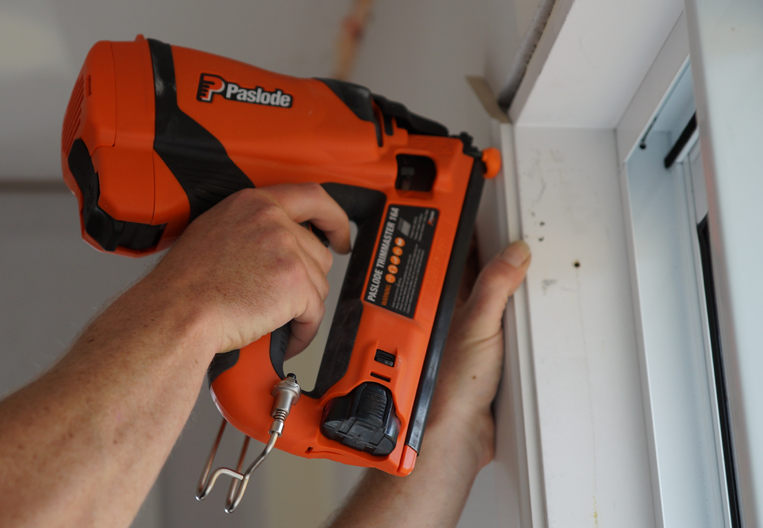

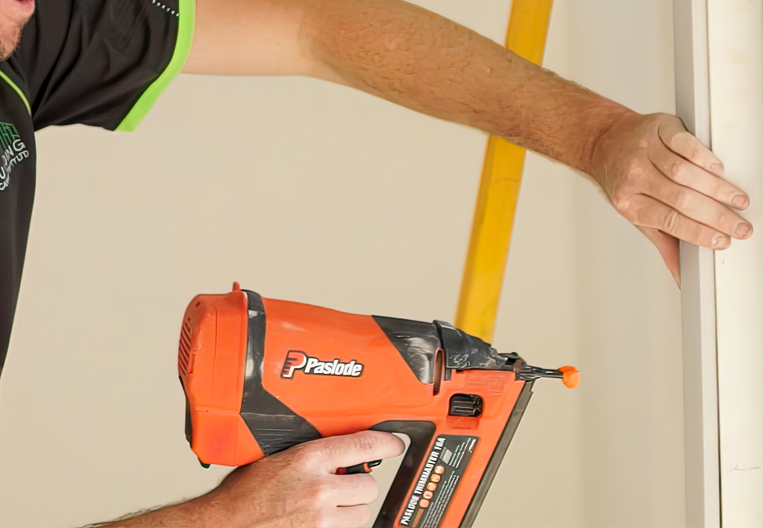

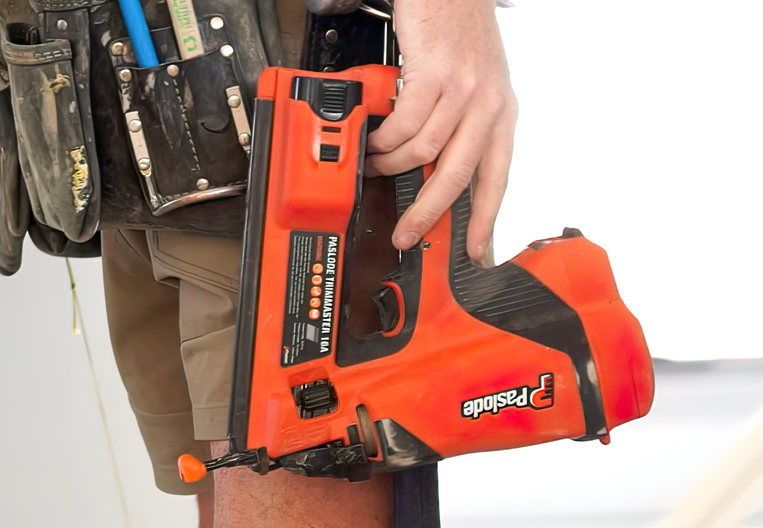

Gallery
Specifications
Features
- Built to perform: Best in class reliability, weight, ergonomics
- New contour body
- Rubberised grip: reduced vibration
- Fuel delivery and nose design built to provide consistent depth of drive
- Longer fan runtime: improved cooling when rapid firing
- Nail lip and bypass follower: for quick and easy nail loading
- Impulse technology: Fuel technology delivers reliability, comfort, and performance
Previous models
- N/A
| Specifications | |
|---|---|
| Model Name | IM250A Li Mk2 |
| Product Code | B20722 |
| Cycle Rate | 1000/hr (2-3/sec. intermittently) |
| Weight | 1.95kg(without battery) 2.13kg with battery |
| Fastener Range | 32-63mm |
| Fuel Cell Life | 1000 Nails (approx.) |
| Dimensions (L x H x W) | 300 x 269 x 82mm |
| Battery Life | 12,000 shots per charge |
| Magazine Capacity | 100 brads x 2 strips |
| Applications |
|---|
| Architraves |
| Beading |
| Mouldings |
| Skirting Boards |
| Quads |
| Panelling |
| Stair Rails |
Featured Videos

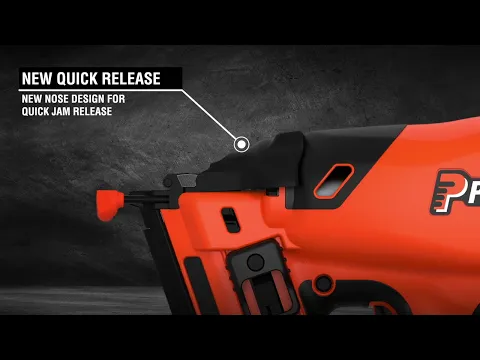

Introducing the 2022 Paslode Angled TrimMaster™
The all new Paslode 16 Gauge Angled Bradder TrimMaster™ is built to perform, check out all the great features in the video.
WTW | Tradie Tough Test | The 2022 TrimMaster™
Find out if Paslode TrimMaster has been test approved by Jamie Gray from What Tradies Want Magazine.
Servicing and Cleaning Tips | The 2022 TrimMaster™
Finishing tools are often used in dusty environments (from skirting and/or finishing lines). Watch this video to learn how to keep them clean and make them last longer.
Watch More On YouTube
For more tips, customer stories and product-specific videos visit our YouTube channel via the button below.
Fastener Charts
Brads Compatible with 2022 Paslode Angled TrimMaster™
Here’s a list of recommended fasteners to use with your Paslode Angled TrimMaster™.
impulse value packs
| Product Code | Length | Brad(Gauge) | Head | Finish | Fuel Cells | Box Qty |
|---|---|---|---|---|---|---|
| B20732 | 32mm | Angled(16ga) | Lost | Electro Galv | 2 | 2000 |
| B20738 | 38mm | Angled(16ga) | Lost | Electro Galv | 2 | 2000 |
| B20780 | 38mm | Angled(16ga) | Lost | Stainless Steel | 2 | 2000 |
| B20745 | 45mm | Angled(16ga) | Lost | Electro Galv | 2 | 2000 |
| B20750 | 50mm | Angled(16ga) | Lost | Electro Galv | 2 | 2000 |
| B20785 | 50mm | Angled(16ga) | Lost | Stainless Steel | 2 | 2000 |
| B20765 | 63mm | Angled(16ga) | Lost | Electro Galv | 2 | 2000 |
