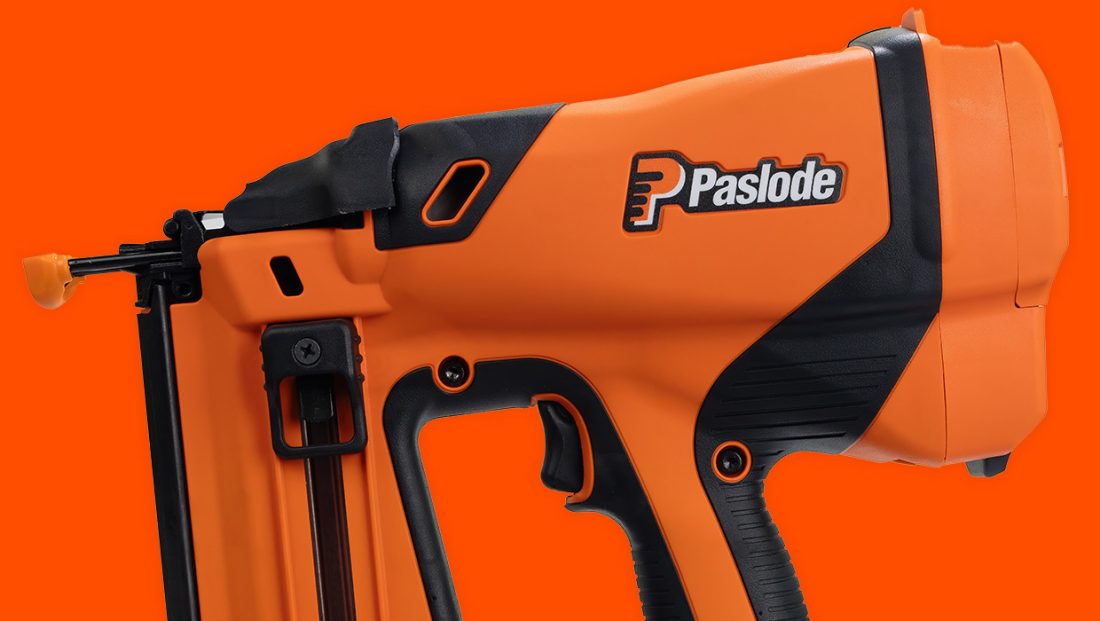

The Paslode 14/16 Gauge Straight TrimMaster™ has been built to perform. Reliable, compact and lightweight, the Straight bradder is the most versatile bradder on the market delivering 16G (C brads), 15G Steel frame brads and 14G (ND brads) by simply swapping the nose plate.
Featured Videos
Get that House of the Year Finish with the all-new Paslode Straight TrimMaster™
Check out the new Paslode Straight TrimMaster™ in action! Discover why it’s the most versatile bradder on the market, effortlessly handling 14 and 16-gauge fasteners with its innovative swap’n’lock nose plate. Watch as top builders achieve a perfect finish every time, thanks to the improved firing mechanism, enhanced line of sight, and easy handling. Don’t miss out on seeing this game-changing tool in use!
Introducing the NEW PASLODE STRAIGHT TRIMMASTER™ | Paul Carter, Paslode Product Manager
Hear from Paul Carter, Product Manager at Paslode Australia, as he introduces the new Paslode Straight TrimMaster™. Dive into the details of how we’ve enhanced its key features and benefits to deliver a world-class finish on a wide range of applications. Discover why this bradder is the most versatile on the market.
Introducing Paslode’s new Steel Frame Brad
Introducing Paslode’s Steel Frame Brad, Australia’s solution for easy timber trim installation in steel frames! No gluing or screwing needed, with a stronger hold in timber. It’s innovative design and special resin ensure extra hold, cutting down your job time significantly. Make your trim fixing jobs a breeze with Paslode!
Watch More On YouTube
For more tips, customer stories and product-specific videos visit our YouTube channel via the button below.
Specifications
Features
- New Swap’N’Lock : easy to change from C (16ga), 15G Steel frame brads and 14G (ND brads) , swappable nose plates, quick release to clear jams
- Contoured body design : provides optimal line of sight, the nose design ensures consistent depth of drive and minimal work surface damage
- Built to perform : battery position for safer handling
- Lithium-Ion battery : drives 12,000 shots per charge time
- Improved cooling when rapid firing
- Quick and easy nail loading
- Reduced vibration
- Delivers reliability , comfort and performance
- No Mar Tip prevents damage to timber and cladding surfaces
Previous models
| Specifications | |
|---|---|
| Model Name | IM250S-Li |
| Product Code | B20711 |
| Cycle Rate | 1000/hr (2-3/sec. intermittently) |
| Fastener Angle | 0° |
| Weight | 1.95kg (2.1kg with battery) |
| Fastener Range | 16 Gauge – 25-65MM + Steel Frame Brad, 14 Gauge 30-62mm |
| Fuel Cell Life | 1,000 Nails (approx.) |
| Dimensions (L x H x W) | 267mm x 299mm x 87mm |
| Magazine Capacity | 50 brads x 2 strips approx. (100 total) |
| Battery Life | 12,000 shots per charge |
| Magazine Angle | 0° |
| Collation Angle | 0° |
| Applications |
|---|
| Architraves |
| Beading |
| Mouldings |
| Skirting Boards |
| Quads |
| Panelling |
| Cladding |
| Stair Rails |
| Window Reveals (ND only) |
| Door Jambs (ND only) |
| Steel Frame Finishing |

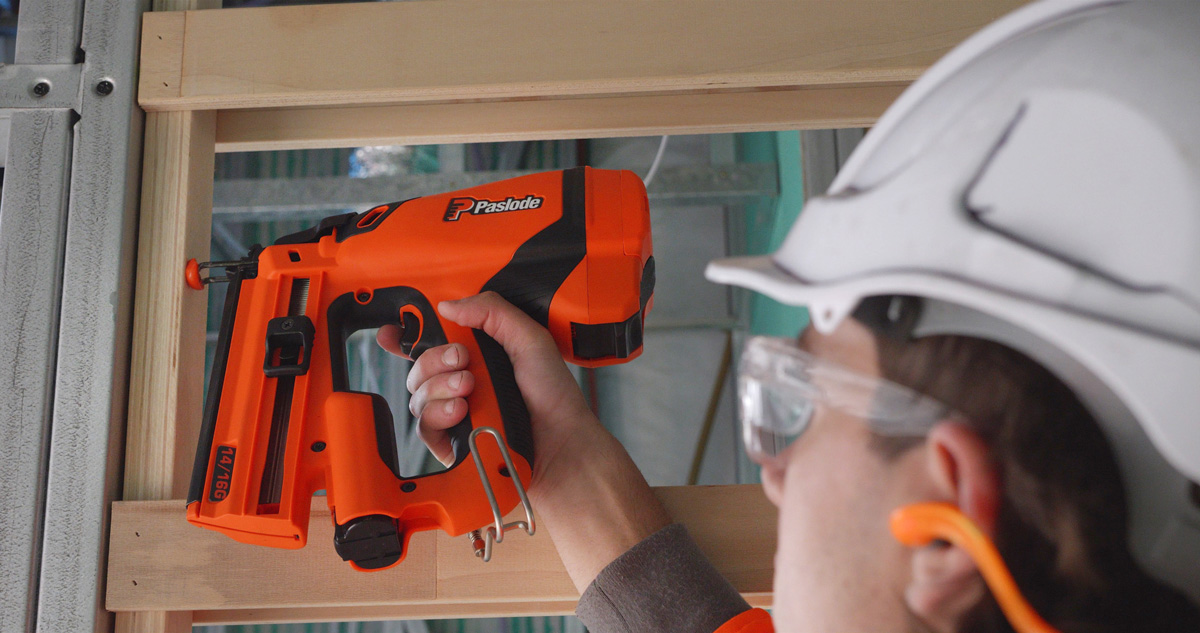

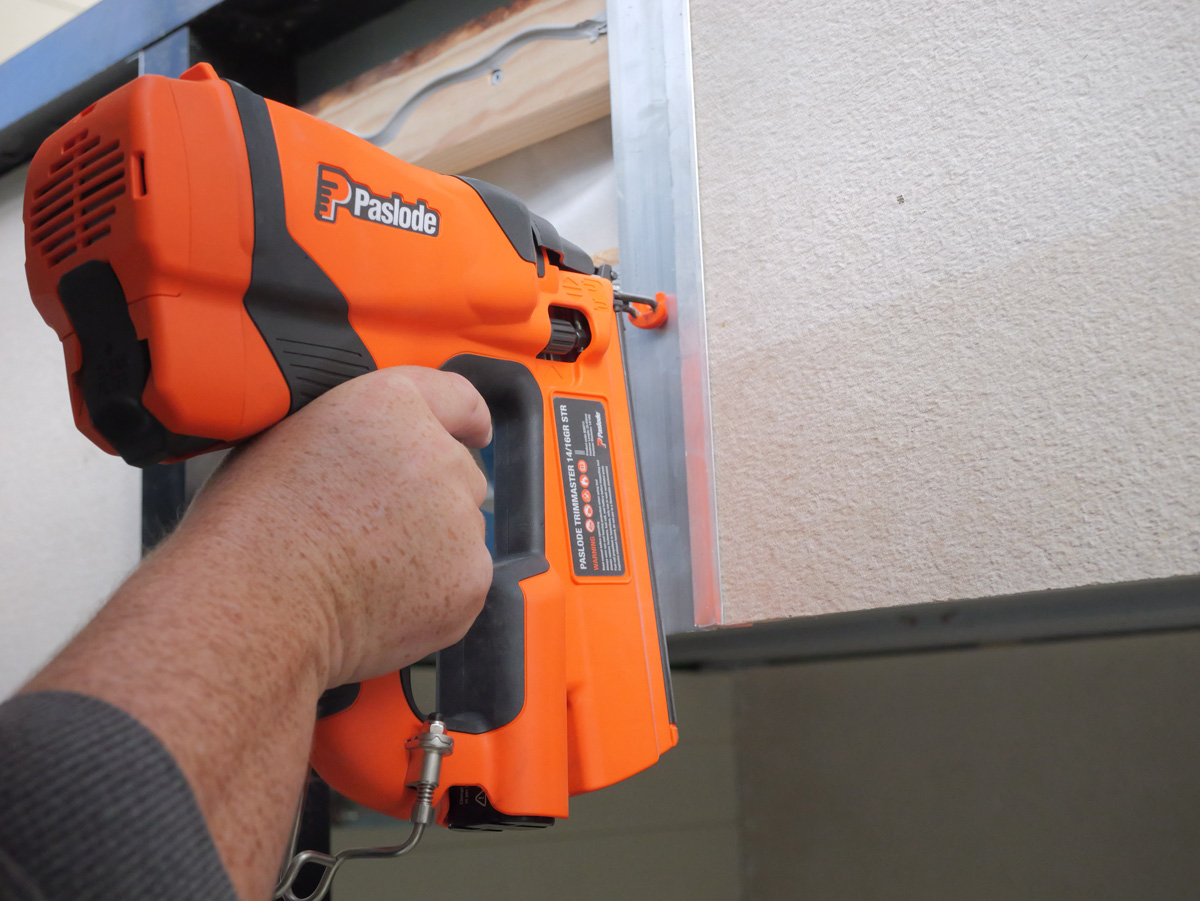

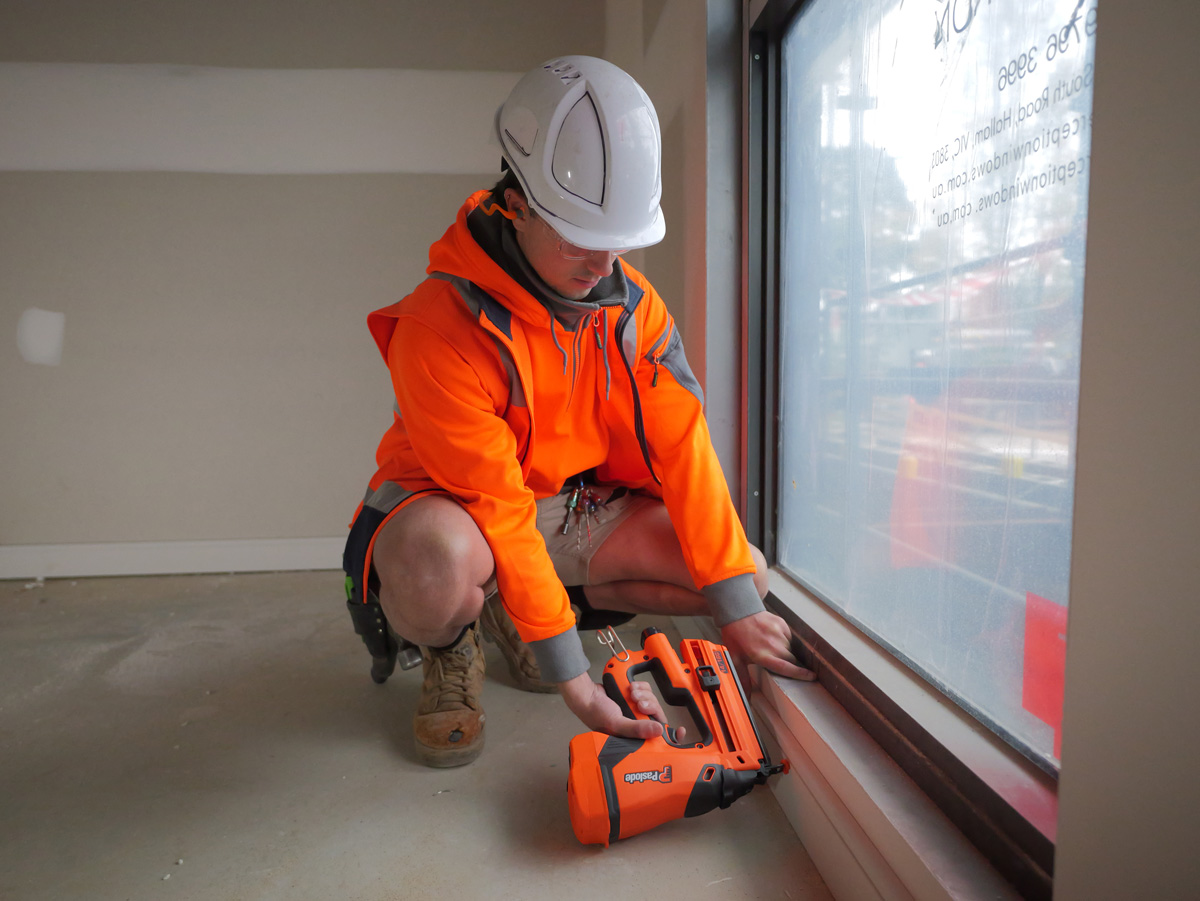

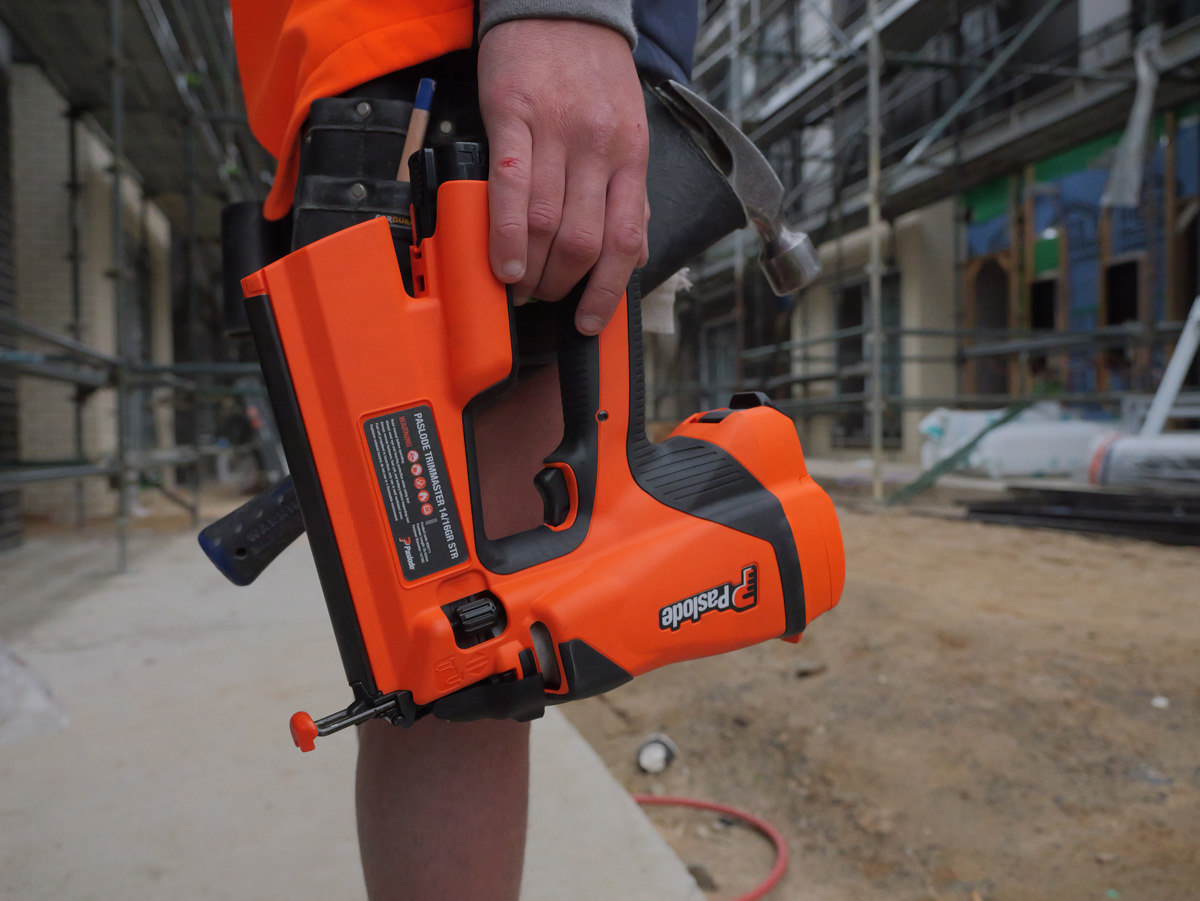

Gallery
Fastener Charts
Brads Compatible with Paslode Straight TrimMaster™
Here’s a list of recommended fasteners to use with your Paslode Straight TrimMaster™.
Brad and Fuel Packs – STEEL FRAME BRAD
| Product Code | Length | Diameter | Head | Finish | Fuel Cells | Box Qty |
|---|---|---|---|---|---|---|
| B20638 | 38mm | 1.7mm | ND | Zinc Plated | 2 | 2000 |
| B21645 | 45mm | 1.7mm | ND | Zinc Plated | 2 | 2000 |
Brad and Fuel Packs – C Series (16ga)
| Product Code | Length | Brad(Gauge) | Head | Finish | Fuel Cells | Box Qty |
|---|---|---|---|---|---|---|
| B20623 | 25mm | C series(16ga) | Lost | Zinc Plated | 3 | 3000 |
| B20650 | 25mm | C series(16ga) | Lost | Stainless Steel | 2 | 2000 |
| B20625 | 32mm | C series(16ga) | Lost | Zinc Plated | 3 | 3000 |
| B20627 | 38mm | C series(16ga) | Lost | Zinc Plated | 3 | 3000 |
| B20654 | 38mm | C series(16ga) | Lost | Stainless Steel | 2 | 2000 |
| B20629 | 45mm | C series(16ga) | Lost | Zinc Plated | 3 | 3000 |
| B20630 | 50mm | C series(16ga) | Lost | Zinc Plated | 3 | 3000 |
| B20657 | 50mm | C series(16ga) | Lost | Stainless Steel | 2 | 2000 |
| B20632 | 65mm | C series(16ga) | Lost | Zinc Plated | 3 | 3000 |
Brad and Fuel Packs – ND Series (14ga)
| Product Code | Length | Brad(Gauge) | Head | Finish | Fuel Cells | Box Qty |
|---|---|---|---|---|---|---|
| B20640 | 30mm | ND Series(14ga) | Lost | Zinc Plated | 2 | 2000 |
| B20641 | 38mm | ND Series(14ga) | Lost | Zinc Plated | 2 | 2000 |
| B20660 | 38mm | ND Series(14ga) | Lost | Stainless Steel | 2 | 2000 |
| B20642 | 45mm | ND Series(14ga) | Lost | Zinc Plated | 2 | 2000 |
| B20643 | 50mm | ND Series(14ga) | Lost | Zinc Plated | 2 | 2000 |
| B20665 | 50mm | ND Series(14ga) | Lost | Stainless Steel | 2 | 2000 |
| B20645 | 62mm | ND Series(14ga) | Lost | Zinc Plated | 2 | 2000 |
