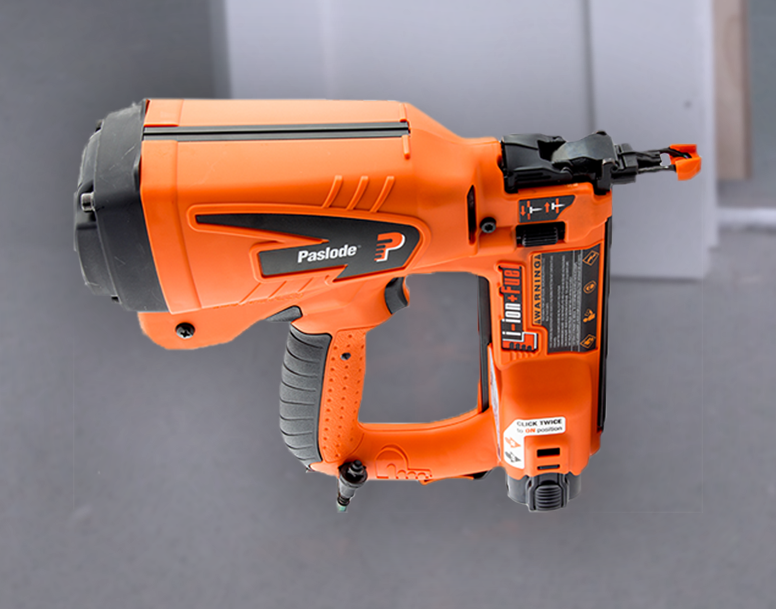

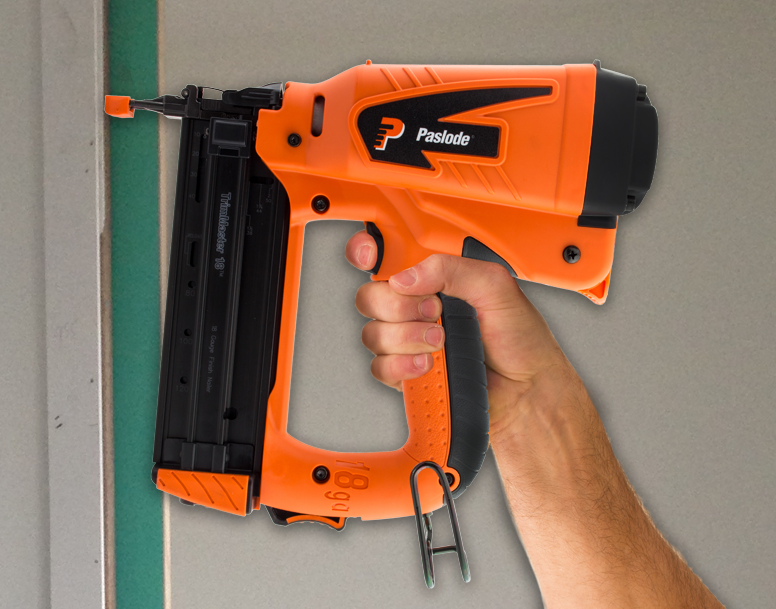

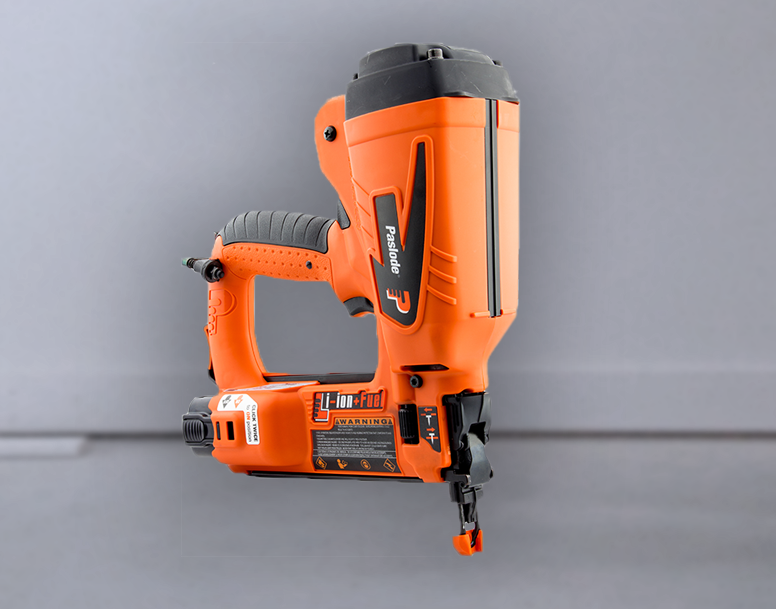

The Paslode Straight Bradder IM200-LI C1 18Ga is lightweight, compact and delivers precise brad placement and a perfect finish. The fine 18Ga brads reduce timber splitting. This bradder is ideal for shopfitting, cabinetry and glass beading.
Gallery
Specifications
Features
- Impulse gas technology eliminates the need for compressors and hoses
- Lightweight design for superior comfort during periods of high use
- Improved line of sight for accurate brad placement
- Quick clear nose reduces downtime if fastener jam occurs
- Brad lock out bar eliminates blank tool firing to protect timber and tool
- Side load magazine for easy and fast re-loading
- Ergonomic design with non-slip hand grip to improve comfort and safety
- Belt hook for convenience
Previous models
- n/a
| Specifications | |
|---|---|
| Model Name | IM200-Li |
| Product Code | B20801 |
| Cycle Rate | 2-3 brads/second intermittently |
| Weight | 2.2kg |
| Fastener Range | 16 – 50mm |
| Fuel Cell Life | 1000 (approx.) |
| Dimensions (L x H x W) | 279 x 292 x 89mm |
| Battery Life | 12,000 shots per charge |
| Magazine Capacity | 100 approx |
| Applications |
|---|
| Architraves |
| Decorative Trim |
| Shop Fitting |
| Glazing Bead |
| Quads |
| Formwork (Fillets) |
| Mouldings |
| Panelling |
Featured Video

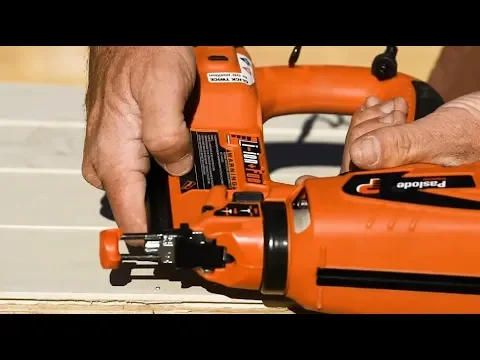

BCM Paslode Impulse Bradder Review
Find out the key features and benefits of the Paslode Impulse Bradder™ review video.
Watch More On YouTube
For more tips, customer stories and product-specific videos visit our YouTube channel via the button below.
Fastener Charts
Brads Compatible with Paslode’s Impulse IM200-Li C1 Bradder™
Here’s a list of recommended fasteners to use with your Paslode Impulse IM200-Li C1 Bradder™.
Brad and Fuel Packs – C1 Series (18ga)
| Product Code | Length | Brad(Gauge) | Head | Finish | Fuel Cells | Box Qty |
|---|---|---|---|---|---|---|
| B20810 | 25mm | C1 Series (18ga) | Lost | Electro Galv | 2 | 2000 |
| B20815 | 32mm | C1 Series (18ga) | Lost | Electro Galv | 2 | 2000 |
| B20820 | 38mm | C1 Series (18ga) | Lost | Electro Galv | 2 | 2000 |
| B20825 | 50mm | C1 Series (18ga) | Lost | Electro Galv | 2 | 2000 |
